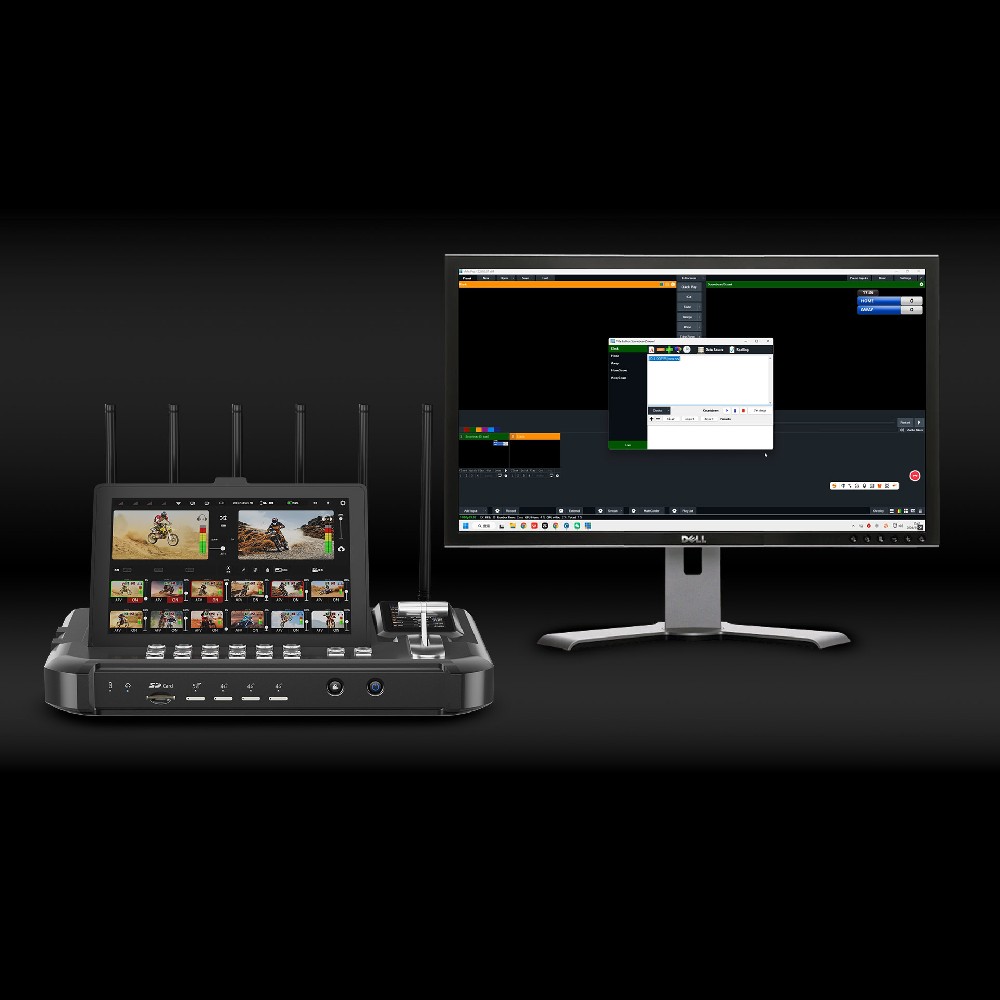

Seamless NDI Integration with vMix
— Advanced Subtitle & Scoreboard Synchronization for Professional Live Production
The MiNE Media R20 5G Bonding Video Switcher now fully supports NDI (Network Device Interface) protocol integration with vMix. This powerful combination allows broadcasters to stream high-quality, transparent subtitles and dynamic scoreboards from vMix directly to the R20 over a local network, eliminating the need for complex physical cabling.
🚩Step-by-Step Workflow
➡ vMix Setup: Configure your titles or scoreboards in vMix and enable NDI Output with the "Premultiplied" alpha channel setting to ensure perfect transparency.
➡ R20 Discovery: Use the R20’s Auto-Discovery feature to instantly find and connect to the vMix NDI signal on your network.
➡ Subtitle Stream Activation: In the R20 OSD (On-Screen Display) settings, select "Subtitle Stream" and bind the NDI input to your desired channel.
➡ Real-Time Overlay: Watch as your vMix graphics overlay seamlessly onto your live R20 program feed with ultra-low latency.
❓Why Choose R20 + vMix NDI?
◾ Zero-Cable Graphics: Stream professional titles and scores over IP, keeping your workspace clean and flexible.
◾ Alpha Channel Support: Experience crisp, transparent overlays that don't block your video content.
◾ Simplified Remote Collaboration: Allow a dedicated graphics operator on a separate PC to push real-time updates directly to the switcher.
◾ High Efficiency: Harness the power of H.265 and NDI for broadcast-grade quality with minimal bandwidth impact.
