Mine R20 5G Bonding Video Switcher
Video Switcher

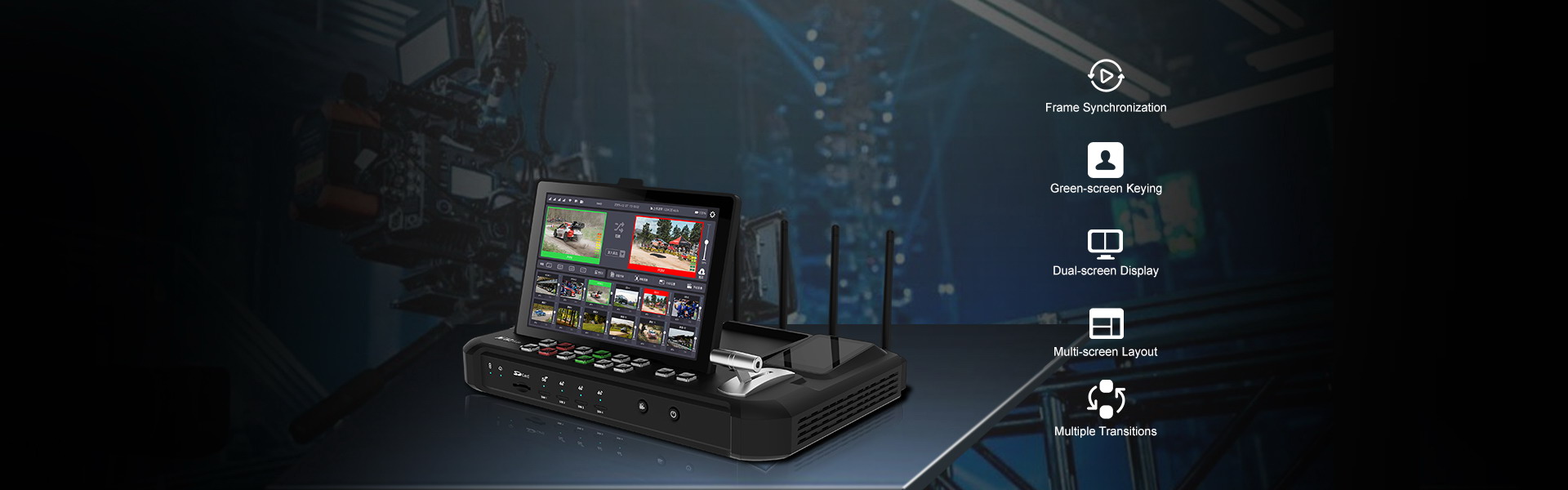

Mine R20 Professional 5G Bonding Video Switcher – Ultimate Live Production Control
The Mine-R20 is a high-performance multi-camera video switcher designed for professional live production, broadcasting, and streaming. With seamless switching, advanced AGC (Automatic Gain Control), and real-time effects, it delivers studio-quality video output for events, sports, news, and online content creation.
Key Features:
✔ Simultaneously bond up to 8 network - Built-in 5G module * 2 & Built-in 4G module *2, WiFi, Ethernet, and 2*USB Dongle.
✔ 6-Input Multi-Camera Control – 3 HDMI & 3SDI inputs, and 6 IP streams for flexible production setups.
✔ Seamless Transition Effects – Cuts, fades, wipes, and customizable transitions.
✔ Built-in AGC & Audio Sync – Auto-adjusts audio levels for balanced sound.
✔ Live Streaming & Recording – Direct RTMP output for YouTube, Facebook, Twitch, etc.
✔ Touchscreen & Hardware Controls – Intuitive operation for fast switching.
✔ Portable & Rack-Mountable – Compact design for studio or on-the-go production.
Ideal For:
🎥 Live Events (Concerts, Conferences, Weddings)
📺 Broadcast Studios (News, Talk Shows, Sports)
🎮 Gaming & Esports Streaming
🎤 Corporate & Education Webinars
Upgrade your production workflow with the Mine R20 – where professional switching meets simplicity.
The Mine-R20 is a high-performance multi-camera video switcher designed for professional live production, broadcasting, and streaming. With seamless switching, advanced AGC (Automatic Gain Control), and real-time effects, it delivers studio-quality video output for events, sports, news, and online content creation.
Key Features:
✔ Simultaneously bond up to 8 network - Built-in 5G module * 2 & Built-in 4G module *2, WiFi, Ethernet, and 2*USB Dongle.
✔ 6-Input Multi-Camera Control – 3 HDMI & 3SDI inputs, and 6 IP streams for flexible production setups.
✔ Seamless Transition Effects – Cuts, fades, wipes, and customizable transitions.
✔ Built-in AGC & Audio Sync – Auto-adjusts audio levels for balanced sound.
✔ Live Streaming & Recording – Direct RTMP output for YouTube, Facebook, Twitch, etc.
✔ Touchscreen & Hardware Controls – Intuitive operation for fast switching.
✔ Portable & Rack-Mountable – Compact design for studio or on-the-go production.
Ideal For:
🎥 Live Events (Concerts, Conferences, Weddings)
📺 Broadcast Studios (News, Talk Shows, Sports)
🎮 Gaming & Esports Streaming
🎤 Corporate & Education Webinars
Upgrade your production workflow with the Mine R20 – where professional switching meets simplicity.

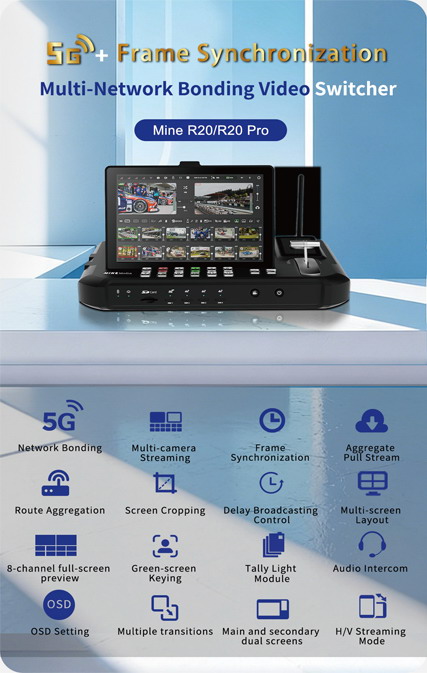

MINE R20 ADVANTAGES

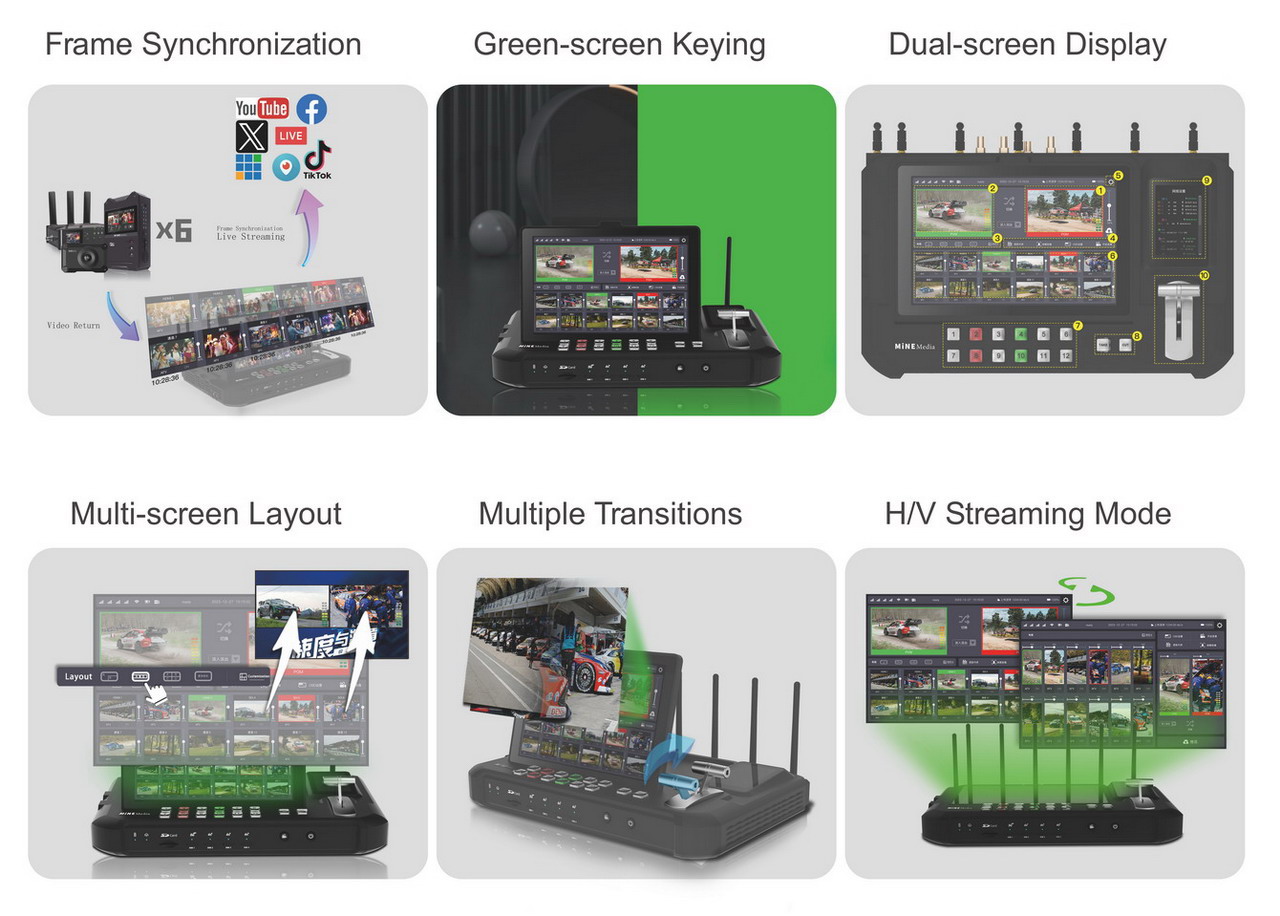

Professional 5G bonded multi-camera video switcher with frame-accurate synchronization

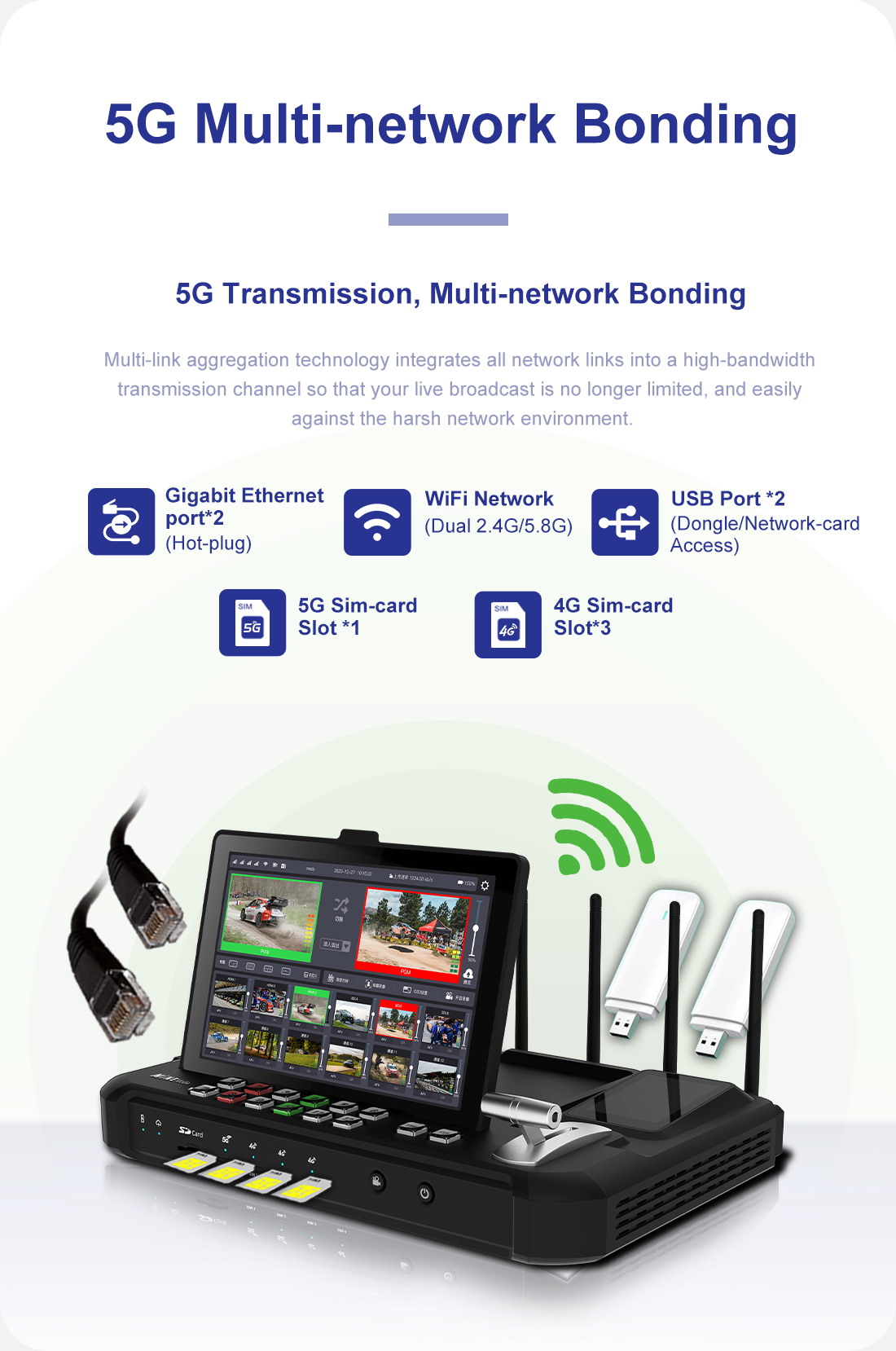

5G/4G multi-network bonding
Frame-synchronized multi-camera switching
Aggregated network pull streaming

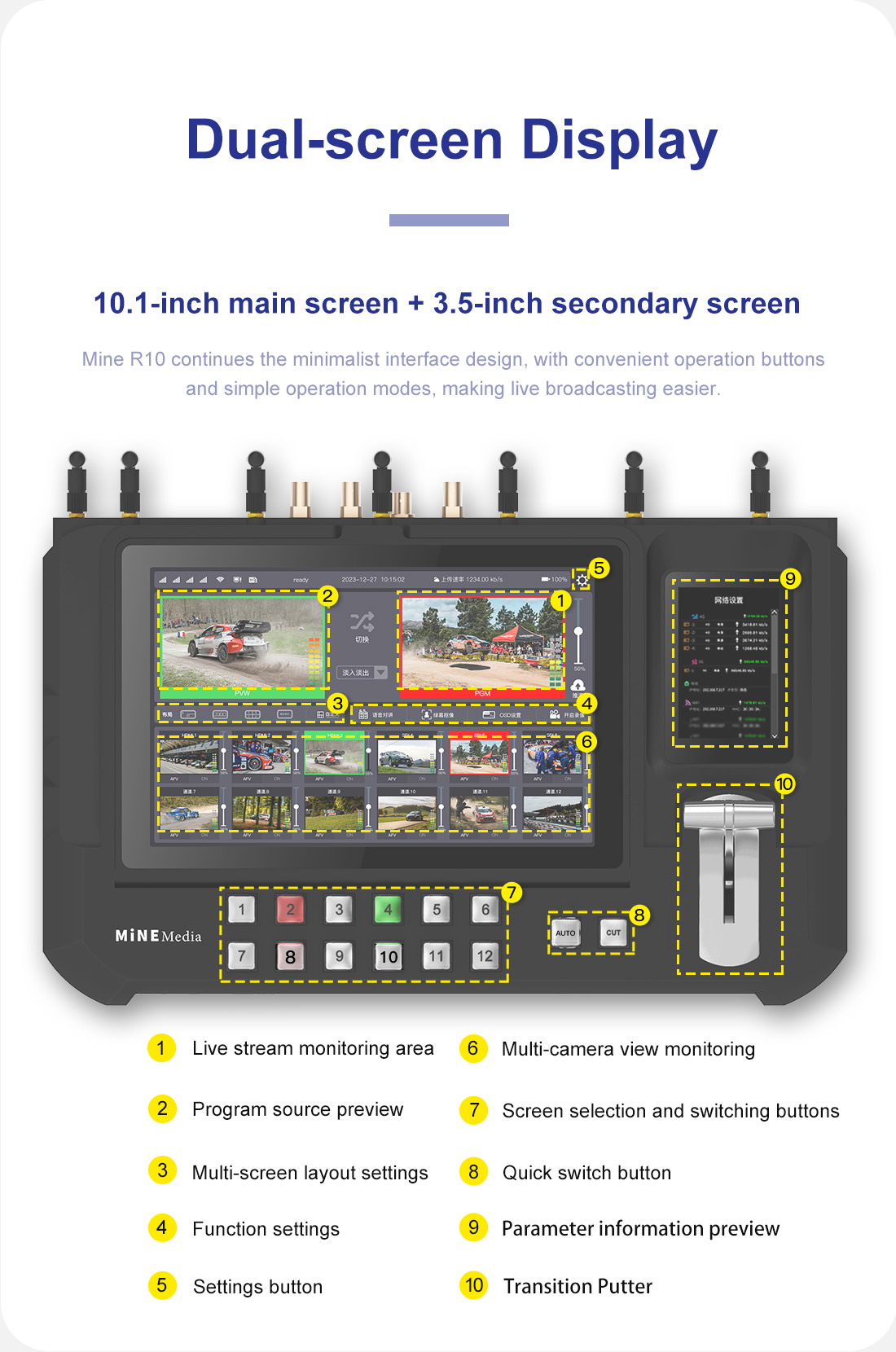

Multi-screen layout & preview
5G/4G multi-network bonding
Frame-synchronized multi-camera switching
Aggregated network pull streaming
Multi-screen layout & preview

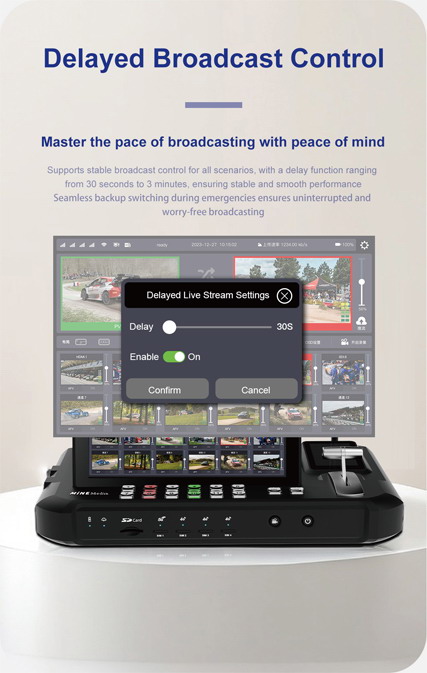

Live Stream Delay Control
Supports adjustable broadcast delay from 30 seconds to 3 minutes for stable and controlled live output.
Seamless backup switching ensures uninterrupted streaming even during unexpected events.
Supports adjustable broadcast delay from 30 seconds to 3 minutes for stable and controlled live output.
Seamless backup switching ensures uninterrupted streaming even during unexpected events.

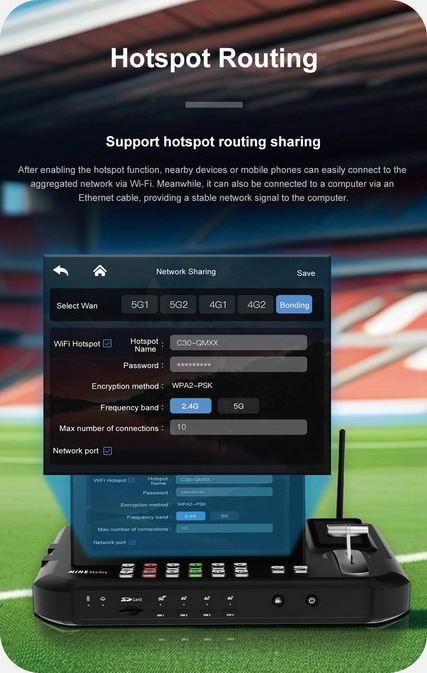

Hotspot Routing & Network Sharing
Enable Wi-Fi hotspot for nearby devices
Share bonded network via Wi-Fi and Ethernet
Stable wired network for computers
Multi-WAN bonding (5G / 4G) for reliable connectivity
Enable Wi-Fi hotspot for nearby devices
Share bonded network via Wi-Fi and Ethernet
Stable wired network for computers
Multi-WAN bonding (5G / 4G) for reliable connectivity
Mine R20 Basic Parameters
| Model | Mine R20/R20 Pro |
| Name | 5G/4G Bonding Switcher |
| Video | |
| Input | 3 HDMI 3 SDI 6 network stream inputs |
| Resolution | 1080P/720P@25/30/50/60fps 1080i@50/60fps |
| Encoding type | H.264 for RTMP / H.265 for recording |
| Encoding Levels | H.265 Main profile, H.264/AVC High / Main / Baseline Profile |
| Stream Resolution | 1920x1080, 1280x720, 960x540, 848x480, 640x360, 480x270 |
| Encoding Video FPS | 15-60FPS |
| Encoding Video Bitrate | adjustable |
| Bitrate control | VBR / CBR |
| Recording resolution | Maximum support 1080p60 |
| TS Protocols | RTMP(S) / SRT / RTSP |
| Audio | |
| Input | HDMI & SDI embed Audio and 1* Canon audio input |
| Output | 1*3.5mm dual-channel audio monitoring |
| Sample Rates | 44.1kHz, 48.0 kHz |
| Encoding | AAC |
| Network | |
| 4 SIM Slots | R20 Built-in 5G module * 1 & Built-in 4G module *3 R20 Pro Built-in 5G module * 2 & Built-in 4G module *2 |
| WiFi | 2.4G/5.8G dual-band WIFI access |
| RJ45 | Gigabit network port |
| USB | External 4G dongle *2, USB network card can be used |
| Storage | TF card (maximum 256G) |
| Power | |
| Power supply | DC12 3A |
| Battery Capacity | 7.4V/12000mAh |
| Maximum consumption | 25W |
| System | |
| Control Panel | iOS / Android APP |
| Firmware Update | supports |
| Remote management | supports |
| Working Environment | |
| Operating temperature | -20 to 80 deg C |
| Storage temperature | -40 to 90 deg C |
| Relative Humidity | 5% to 90% non-condensing |
| Dimension & Accessories | |
| Dimension | 395mm*240mm*50mm |
| Weight | |

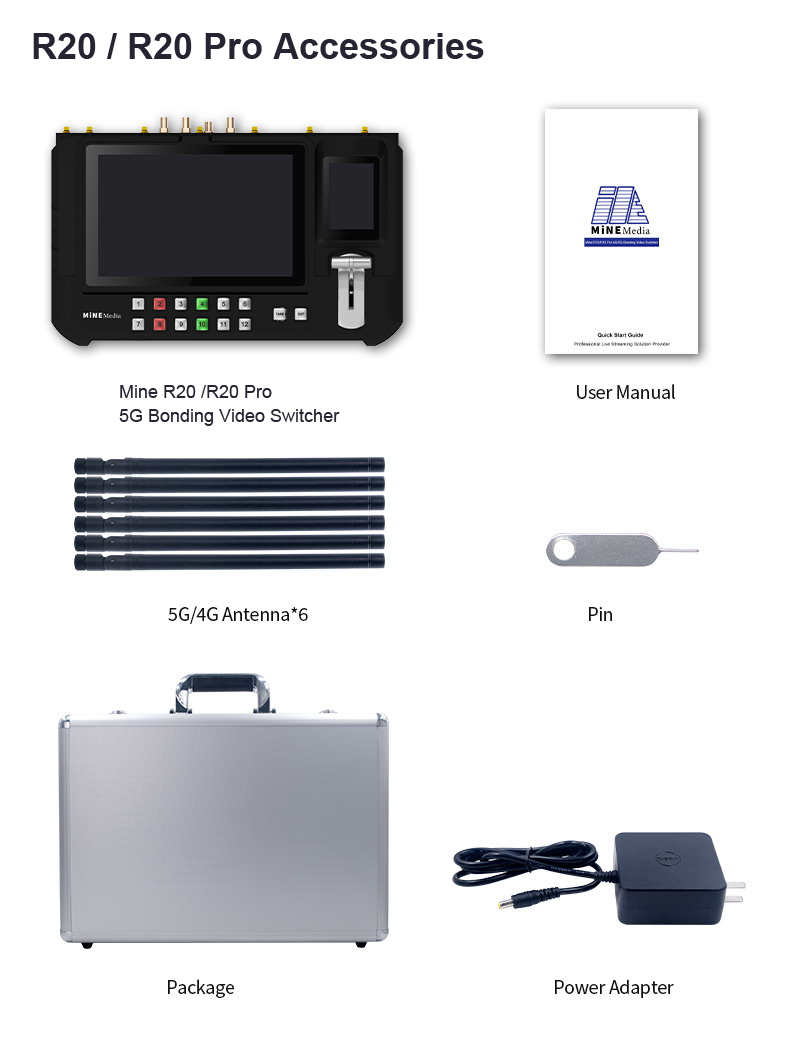

WHAT'S IN THE BOX
Package includes:
Mine R20 5G Bonding Video Switcher *1
Protective suite case *1
Antenna *6
Power adapter *1
Pin *1
Manual*1
