MINE C300 SOLUTION
Mine C300 5G Bonding Encoder
Video Encoder
✔ 5G Multi network aggregation encoder, simultaneously bond up to 8 network links including support for 2*5G LTE, 2* 4G LTE cellular, WiFi, Ethernet, and USB Dongle. (C350 with 4*5G, WiFi, Ethernet, and USB Dongle.)
✔ FHD & H.265/H.264 Support – High-efficiency encoding for superior video quality at lower bitrates.
✔ Wide Connectivity – HDMI, SDI, UVC Camera, and Pull Stream as inputs for versatile integration.
✔ Ultra-Low Latency – Ideal for live sports, gaming, and interactive streaming.
✔ Advanced AGC & Noise Reduction – Ensures optimal audio clarity in dynamic environments.
✔ Multi-Protocol Streaming – Supports RTMP, RTSP, SRT, HLS, and more for flexible delivery.
✔ User-Friendly MLive App – Easy setup and remote management.
✔ Portable to carry, Internal rechargeable battery provides up to 3 hours of continuous streaming.
✔ FHD & H.265/H.264 Support – High-efficiency encoding for superior video quality at lower bitrates.
✔ Wide Connectivity – HDMI, SDI, UVC Camera, and Pull Stream as inputs for versatile integration.
✔ Ultra-Low Latency – Ideal for live sports, gaming, and interactive streaming.
✔ Advanced AGC & Noise Reduction – Ensures optimal audio clarity in dynamic environments.
✔ Multi-Protocol Streaming – Supports RTMP, RTSP, SRT, HLS, and more for flexible delivery.
✔ User-Friendly MLive App – Easy setup and remote management.
✔ Portable to carry, Internal rechargeable battery provides up to 3 hours of continuous streaming.
MINE C300 ADVANTAGES
Mine C300 Basic Parameters
| Model | Mine C300 / Mine C350 |
| Name | 5G/4G Bonding Encoder |
| Video | |
| Input | 1* HDMI, 1* SDI , 1* UVC Camera, 1* Pull Stream. |
| Resolution | 480i: 720×480@59.94i 576i: 720×576@50i 1280×720@25p/30p/50p/60p/120p 1080p: 1920×1080@50i/60i 1080p: 1920×1080@25p/30p/50p/60p |
| Encoding Levels | H.265 Main profile, H.264/AVC High / Main / Baseline Profile |
| Stream Resolution | 480×270, 640×360, 848×480, 960×540, 1280×720 1920×1080, 3840×2160 |
| Encoding Video FPS | 15-60FPS |
| Encoding Video Bitrate | adjustable |
| Bitrate control | VBR / CBR |
| Recording resolution | Max 2160p30 |
| TS Protocols | RTMP(S) / SRT / RTSP |
| Audio | |
| Input | HDMI & SDI embed Audio and 1* 3.5mm dual-channel external audio |
| Output | 1*3.5mm dual-channel audio monitoring |
| Built-in | Loudspeaker |
| Sample Rates | 44.1kHz, 48.0 kHz |
| Encoding | AAC |
| Network | |
| 4 SIM Slots | Built-in 5G module * 2 & 4G module * 2 C350 Built-in 5G module * 4 |
| WiFi | 2.4G/5.8G dual-band WIFI access |
| RJ45 | Gigabit network port |
| USB | External 4G dongle, USB network card can be used |
| Storage | TF card (Max 2TB) |
| Power | |
| Power supply | DC12 3A |
| Battery Capacity | 7.4V/12000mAh |
| Maximum consumption | 38W |
| System | |
| Control Panel | iOS / Android APP |
| Firmware Update | supports |
| Remote management | supports |
| Working Environment | |
| Operating temperature | -20 to 80 deg C |
| Storage temperature | -40 to 90 deg C |
| Relative Humidity | 5% to 90% non-condensing |
| Dimension & Accessories | |
| Dimension | 123mm*190mm*50mm |
| Weight | 780g |
WHAT’S IN THE BOX
Package includes:
Mine C300 5G Bonding Encoder (Dual HDMI/SDI)*1
Large Backpack (Optional)*1
Small Backpack *1
Shoulder Straps *1
Power adapter*1
Manual*1
Package includes:
Mine C300 5G Bonding Encoder (Dual HDMI/SDI)*1
Large Backpack (Optional)*1
Small Backpack *1
Shoulder Straps *1
Power adapter*1
Manual*1

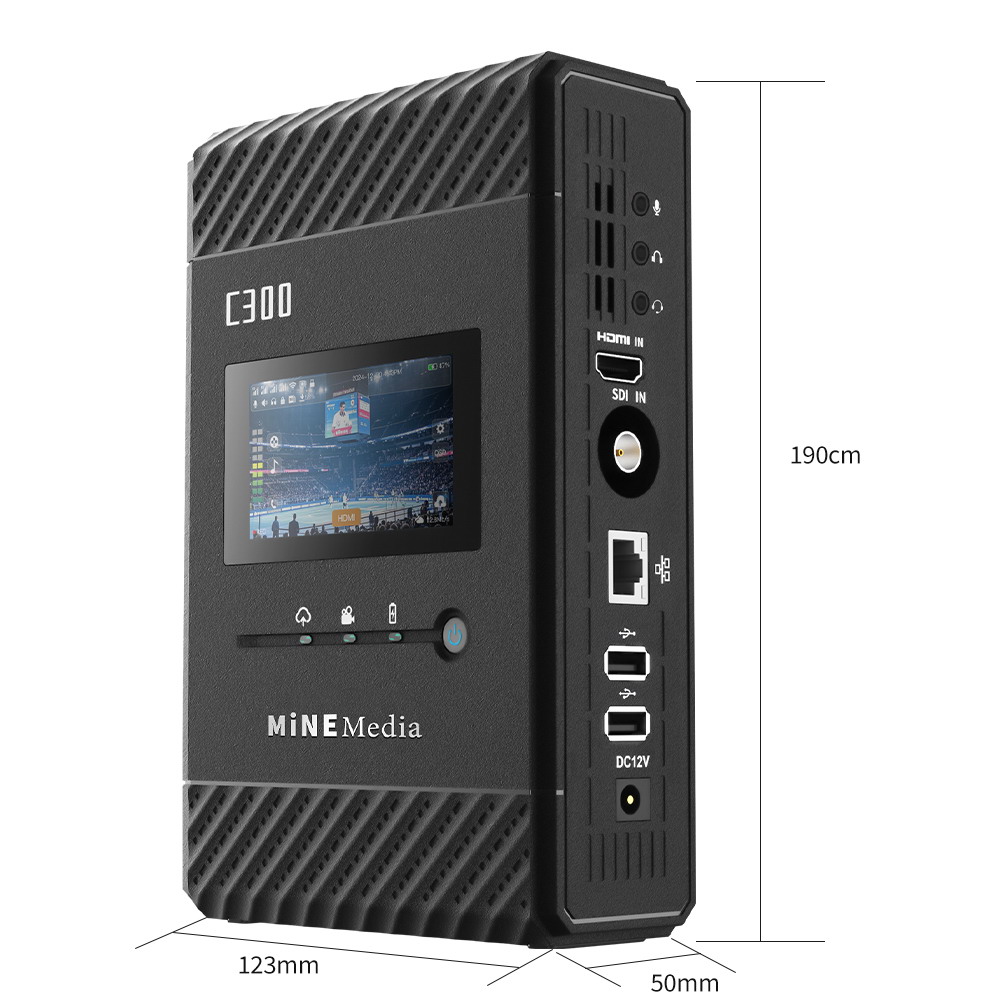

Mine C300 Size
