M4-Mini Cellular Bonding Router

Cellular Bonding

M4 Mini - MiNEMedia Multi-Sim Router is designed to aggregate 4 Sim, 1 Ethernet to create a single rebust pipeline for delivering video/data. The combination of several network connections allows broadcasters to reinforce their video by sending traffic over multiple routes, repacking at the destination with rock-solid dependability.

It only works as bonding router and cannot be used as a standard encoder. It does have the advantage of being light, and convenient for carry, and also no need cables when outdoor live broadcasting.

You can connect up to 4 sim cards and Ethernet max, which allow you to transmit video or data via bonding server with Linux Debian Above 9.0 OS. Bonding server can be built yourself or rent from Ali could/ Amazon server.

A built-in LCD display shows you the network of each sim speed status, Ethernet speed status if connected; in the top of the screen also shows you total upload and download speed. The unit power supply is AC 12V, 3A, after full charge, it can work 5-6 hours outdoor.

Guide More Docs Get a Quote

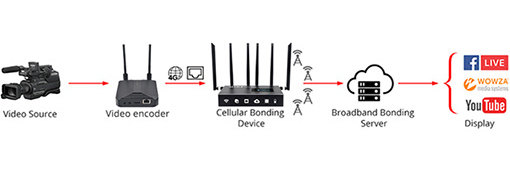

M4 MINI CONNECTION

M4 Mini bonding router through bonding server, provide the network to office, laptop, encoder, mobile, etc.

Multi-Sim Bonding Router with 4 4 Sim.

M4 Mini work with video encoder (Mine Q7) for live streaming to social media, like facebook, twitter, Youtube, etc.

Mine M4 Mini Basic Parameters

Model	M4 Mini
Name	4G Cellular Bonding Router
Network
2 SIM Slots	Built-in 4G module * 3
RJ45	1000mbps
WiFi	2.4G/5.8G
Antenna	External
Uplink / DownlinkSpeed	80Mb/s max
Power
Power supply	DC12V 3A
Battery Capacity	9600 MA (built-in)
Maximum consumption	5W
System
Control Panel	Web Control
Server Binding Option	A. Customer Rent Local Server B. Mine Help build Customer Own Server
Firmware Update	supports
Working Environment
Operating temperature	-20 to 80 deg C
Storage temperature	-40 to 90 deg C
Relative Humidity	5% to 90% non-condensing
